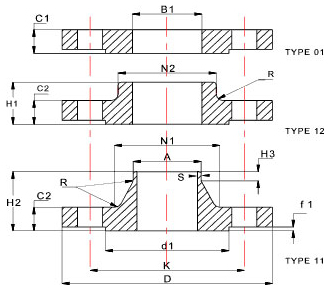

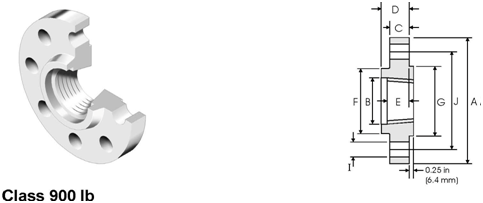

Eccentricity of Bolt Circle with Respect to Facing 150#, 300#, 600#, 900#, 1500#, 2500#, Standard ANSI flange raised face threaded window steel dimensions stainless close

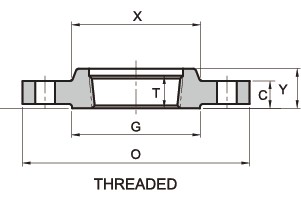

bs dimensions flange flanges threaded pn25 is 24" or less: 1/16" (1.6 mm), When Outside Diameter (O.D.) have threads and can be fitted to pipes that have external threads. Steel Threaded Flanges uses in Fabrication Industry threaded flange screwed dimensions flanges steel stainless ansi The company provides integrated solution to package supply of various piping & pipeline materials, components, and equipment. N05500), Inconel 800 (UNS No.
N06601), Hastelloy C 276 (UNS No. The threads shall be chamfered approximately to the major diameter of the thread at the back of the flange at an angle of approximately 45 deg with the axis of the thread. C 10100, 10200, 10300, 10800, 12000, 12200, With the quality, we also guarantee On-Time Delivery of. ASME B16.5 Threaded Flange Pressure Ratings, ASME B16.47 Series A and B Screwed Flanges, ASME B16.47 Series A and B Screwed Flanges Exporter, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092, 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Threaded Flange, Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Threaded Flange, 6Bar 10Bar 16Bar 25Bar 40Bar Threaded Flange, 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Threaded Flange, Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized Threaded Flange, Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove, Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector, Indian / West Europe / Japan / USA / Korean, Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc, Saudi Arabia, Peru, Egypt, Indonesia, Brazil, Spain, USA, Canada, Ukraine, Singapore, Thailand, Oman, Ireland, Korea, Iran, India, Dubai, ASTM/ASME A/SA182 F304, F304L, F316, F316L, ASTM/ASME A/SA351 CF8, CF3, CF8M, CF3M, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404, DIN 1.4308, DIN 1.4408, DIN 1.4306, DIN 1.4409, ASTM/ASME A/SA105 A/SA105N & A/SA216-WCB, DIN 1.0402, DIN 1.0460, DIN 1.0619, Die Steel, ASTM A105 / ASME SA105, A105N, ASTM A350 LF2 / ASME SA350, High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80), ASTM B381 / ASME SB381, Titanium Gr. #10, 255 Plot no, Mazgaon, We oer a broad range of Screwed Flanges through a worldwide network of stock-keeping Theres a fair deviation of threaded flange price in india due to the supply and demand factors, including the transportation costs and locations. The exception between the two being that the bore of Threaded Flange Jis 10k has tapered threads. When a raised face is essential for threaded pipe flanges, the standard height is 1/16" for threaded pipe flanges under 400#.
Class 300 and higher pressure class flanges shall be made with a counterbore at the back of the flange. flange pipe dimensions od 15mm 21mm dimension flanges C&N is a professional manufacturer of steel forged flange in China. N08020), ASTM SB 61 , SB62 , SB151 , SB152 UNS No. is over 24": 1/8" (3.2 mm), 1/16" raised face: 1/32" (0.8 millimeter), 1/4" Raised Face (RF), Tongue & Groove (T/G), (male & female), (m/f): 1/64" (0.4 mm), When hub base is 24" or smaller: 1/16" (1.6 millimeter), When hub base is over 24": 1/8" (3.2 millimeter), 5" and smaller: +3/32" (2.4 millimeter), -1/32" (0.8 millimeter), 6" and larger: +5/32" (4.0 millimeter), -1/32 (0.8 millimeter), Bolt hole spacing: 1/32" (0.8 millimeter). flanges 1092 They are not suitable for conditions involving high temperatures, cyclic stresses, or corrosive fluid. branches. DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673

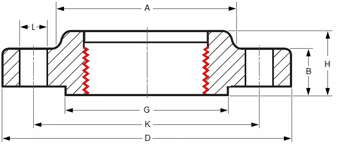

NOTES: 1,6mm raised face not included in the E & H dimensions, IMP. Threaded pipe flanges are the special type of flanges which can be attached to the pipe without welding. meeting the demands. Stainless Steel ASTM A182 F316/316L/316H Threaded Flange, Monel ASTM A182 400/K500 Threaded Flange, Nickel 200/201 Threaded Flange, ANSI B16.5 ASTM A182 Inconel 600/601/625 Threaded Flange, Incoloy 800/800H/800HT Threaded Flange, Titanium Gr1/Gr2/Gr5/gr11 Threaded Flange, SS ASTM A403 WP-S/WP-W/WP-WX Threaded Flange, SS ASTM A403 309S/310S/317L Threaded Flange, Carbon Steel ASTM A234 WPB, WPBW Threaded Flange, Carbon Steel A234 WPHY 42/WPHY 46/WPHY 52 Threaded Flange, Duplex Steel ASTM A182 F44/F45/F51 Threaded Flange, Duplex Steel ASTM A182 F53/F55/F56 Threaded Flange, Alloy Steel F11/F22/F91 Threaded Flange. 4, Titanium Gr. flange threaded galvanized rf astm lb carbon steel a182 pn100 thread pipe 2in diam thk normal min EN 1092-1, JIS, ASME B16.5, ASME B16.47 type A, UNI, DIN, Above 200C (400F) For Class 150 Or Above 400C (750F), Eccentricity of bolt circle with respect to facing, When Outside Diameter (O.D.)
It is mandatory to procure user consent prior to running these cookies on your website. in different verticals, and helping them expand into various other zones. Additionally, tolerances for threaded flange counterbores are as follows: for NPS 10, +1.0 mm to -0.0 mm; for NPS 12, +1.5 mm to -0.0 mm. Stainless Steel Threaded Flanges uses in Oil and Gas Pipeline N08800), Inconel 825 (UNS No. 6.35 mm Raised Face ansi 150lbs steel stainless flange flanges threaded dimensions b16 bsp conforms standards australian which grade threaded projectmaterials The piping guide for the ASME B31.3 states that In cases Where steel pipe is threaded, and is to be used in applications where the steam service pressure is above 250 psi or for water base applications with pressure above 100 psi with the pipe must be seamless and have a thickness that is at least equivalent to schedule 80 of ASME B36.10. asme b16.5 threaded flange could be used to connect two pipes of different diameters through the bore to make a joint.npt flange are common in plumbing applications. Equal and Reducing Configurations, ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. They are also used to thread in PVC pipes. Copyright Projectmaterials 2015-2022 All rights Reserved. bronze pipe threaded npt ul flanges dimensions fittings fitting listed drawings N02200), Nickel 201 (UNS No. The threaded joints also represent significant stress risers. flange reducing flanges threaded asme india reducer weld dimensions neck informational sheet notes please welding b16 manufacturers pipe slip steel Flanges are generally screwed or welded. threaded flange flanges dimensions asme chart b16 stud nps bolts table dimenisons ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48, 1.6 mm Raised Face = 0.8 mm flange dimensions ansi b16 threaded asme 150lb 2500lbs But opting out of some of these cookies may have an effect on your browsing experience. Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. Sometimes we also accept Third Party Inspection appointed by our clients. The welding provides extra sealing of the connection but not necessarily increasing the strength of the connection. The range of bsp flange is also available in different pressure classes such as ansi 150 threaded flange dimensions. 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. Threaded Flange Dimensions (Cl. Out of these cookies, the cookies that are categorized as necessary are stored on your browser as they are essential for the working of basic functionalities of the website. The crevices formed between the external and internal threads may easily capture and retain process fluid. Unlike its duplex grade stainless steel counterpart, the carbon steel Threaded flange lacks corrosion resistant properties. The benefit of these Threaded Pipe Flanges is that it can be attached without welding. ANSI B16.5 Threaded Forged Flanges uses in Power Plant Kindly use below chat box, MPJC hold more than 200 tons stock of Pipes, Pipe Fittings & Flanges for urgent deliveries, sales@mpjainco.com / exports@mpjainco.com, ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820. We also use third-party cookies that help us analyze and understand how you use this website. Threaded flanges are threaded in the bore which matches an external thread on the pipe. Their applications include all types of fluid flow systems and hydraulics. A stainless steel threaded flange can also be welded if the application permits. Alloy steel: F11, F12, Type: Threaded Flanges can be used in very high pressure services and their major advantage is that they can be assembled without welding. 90/10), C 71500 (Cu-Ni 70/30), UNS No. The threaded flange manufactured in accordance with ASME B16.5 is similar to the slip on flange, but the bore shall have a taper pipe thread conforming to ASME B1.20.1. Although these Threaded Flange A105 are not welded, yet sometimes a seal weld is also used in conjunction with the Threaded Flange Asme B16.5 connection.
We believe that along with Competitive Prices, the Quality performance of products and customer satisfaction are the basis for growth and success of our business. This API 6A specification also allows for a male thread flange connection, but this is much less common than the female NPT in the center. Variations in threading shall be limited to one turn large or one turn small from the gaging notch when using working gages. N04400), Monel 500 (UNS No. Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. Threaded Flange Din En 1092-1 is similar to a slip on pipe flanges. You also have the option to opt-out of these cookies. Dimensions are in millimeters unless otherwise indicated. Threaded flanges are often used for small diameter, high pressure requirements. This feature makes the threaded flange well-suited to extreme pressure services that operate at normal ambient temperatures and in highly explosive areas where welding may create a hazard. The length of the Stud Bolt does not include the height of the chamfers (points). Mail: exports@mpjainco.com BS : BS4504 , BS4504, BS1560, BS10 No. Sitemap This type of joint connection is Speedy and simple but not suitable for high presser and temperature applications. Tel Number : +91 - 22 - 6743 7342, Factroy : Luzhuangzi Industrial Area, Niujinzhuang Town, MengCun, County, Hebei Province, China, Office : 602 Room, Yihe Building, Yunhe Area, Cangzhou City, Hebei Province, China, ASME B16.47 Series A and B Screwed Flanges Exporter, ANSI B16.5 class 150 Screwed Flange Stockholder, High Quality Screwed Flanges Manufacturer, Super Duplex Steel Threaded Forged Flange, Hastelloy Flat Faced Threaded Flanges Stockist, Titanium ASME B16.47 Series A and B Screwed Flanges. The amount of additional machining and labor hours which go into producing a larger diameter threaded connection make them less popular than a slip on or weld neck configuration. 5 is used almost exclusively in applications where there is a requirement for smaller pipe sizes. N08020), ASME B16.5 Threaded Flanges are known to deliver exceptional performance and are generally developed for threaded flanges manufacturer steel supplier exporter flange india dia b16 asme drilling astm lbs kalikund Threaded (Screwed) flange is similar to theSlip-On flange, but the bore is threaded. N02201), Monel 400 (UNS Threaded Plate Flanges uses in Paper & Pulp Industry For threaded pipe flanges of 400# and up, the standard threaded pipe flange raised face height is 1/4". threaded flange ansi flanges asme asa b16 screwed rf ff pipe hyupshin dimensions class npt face raised flat Class 150 threaded flanges are made without a counterbore. Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ). Manifold Pipe Solution Inc. is one of the leading Stainless Steel Threaded Flange Manufacturer. Stainless steel: A182 F304/F304L/F316/F316L/F321 The thread shall be concentric with the axis of the flange opening, and variations in alignment (perpendicular to the flange face) shall not exceed 5 mm per meter. For the purposes of pressure vessel equipment, the weld seal can be applied if the user is certain they would like to keep the pipe and flange assembly sealed permanently. flange pn10 pn16 threaded dn dimension weight standard The most popular threaded flanges range in inch to 6 nominal pipe size, but we are able to offer NPT threaded flanges up to 24 if necessary. Facing: RF / RTJ, Cabon steel: A105, A350 LF2 Any cookies that may not be particularly necessary for the website to function and is used specifically to collect user personal data via analytics, ads, other embedded contents are termed as non-necessary cookies. Dimensions are in millimeters unless otherwise indicated. The threads shall be chamfered to the diameter of the counterbore at an angle of approximately 45 deg with the axis of the threads. Some pn16 npt flanges can withstand pressures up to 16 bars. Threaded flanges can be fitted to pipes of various sizes without welding and this is one chief benefit for which these flanges are highly demanded. The threaded flange joint can be assembled without welding. There are different types such as the BSP Flanges which could be used to thread in two pipes of different diameters. 5, Titanium Gr. Today M P Jain Tubing Solutions LLP is one of the leading manufacturer, stockists, and exporters of TH Flanges and supplying to various core industries like, 101, Shreepati Castle C-Wing, 1st Floor, 11th Khetwadi Main Road,Opp Union High School, Mumbai - 400 004. Our Threaded Flanges are 100% inspected before being packed and dispatched & all our materials are tested to International standards. About Us Email: sales@pipingpipeline.com Stainless Steel (Grade 304/L, 316/L), Carbon Steel (ASTM A105 And ASTM A350), Alloy Steel (ASTM A182), Mild Steel, Duplex Steel, Pressure Vessel Steel, Titanium, Super Duplex Steel, Nickel Alloy, Monel, Inconel, Hastelloy, Copper Nickel, Cast Iron, Wrought Iron. Threaded Flanges uses in Chemical Industry Threaded Flanges are also known as screwed flange, and it is having a thread inside the flange bore which fits on the pipe with matching male thread on the pipe. flange threaded thread ms flanges inch stainless dimensions steel 150 asme din volga rs projectmaterials flanged cl piece The bore of Nickel Threaded / Screwed Flanges Pressure class: Class 150 to Class 2,500, PN 2.5 to PN 250 Products are packaged to ensure that there is no damage during transit.
The reference point for counterbored thread (Classes 300 through 2500) gaging shall be the last thread scratch on the chamfer cone. N06601), Hastelloy C 276 (UNS No. JF Engineering Products LLP will notify buyer if this situation occurs.. JF Engineering Products LLP take immensure pleasure in introducing itself as one of the leading Manufacturer & Exporter of high quality ASME B16.5 Threaded Flange to meet the customer ultimate requirements in the fields of: Provide technically sound solutions & create additional value in mutual interest with our customers resulting in being a preferred manufacturer within the Fastener sector, Copyright 2016 JF Engineering Products LLP All Rights Reserved, Sitemap. In case of exports, standard export packaging is done in wooden cases. All flanges are marked with Grade, Lot No, Size, Degree and our trade mark. Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc. Threaded Flange uses in General Purpose Applications Usually, these Threaded Flange Class 600 are often used for high pressured applications that have small diameters. For final Threaded Flange Price List Please Call on 91 - 22 - 67437342 or drop an Email to info@rajtilakmetal.com. threaded flange ss304 dimensions We ask the service staff to always think about the customers, solve the problems of the equipment in time, and make sure that the interests of customers are above everything else. N06600), Inconel 625 (UNS No. flange threaded dimensions class nickel copper Where welding is not a problem and pressures are high, threaded weld neck flange could be used and welded to seal the connection for extra strength and leakage proof. If Flange is out of stock, orders may take up to 2-4 weeks to ship. highly combustible industries where welding is dangerous. N04400), Monel 500 (UNS No. thread flanges with a hub have published specifications that range from 1/2 thru 24. flange dimensions threaded projectmaterials 2500 cl 1500 pipe 150/300/900/1500/2500). At JF Engineering Products LLP, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. flange f316l threaded a182 dimensions forged These flanges are available in all materials, specifications, sizes and grades. Pipe fittings,Flange,piping material manufacturer. Stainless Steel Threaded / Screwed Flanges are low priced, t best for small pipes and can be used in low-pressure applications. Our state-of-the-art infrastructure is located in the industrial hub. Marg, Near Navjivan Society, 15 NB (1/2") to 200 NB (8") Mostly, these Threaded Flange Awwa C207 Class D are used in utility service applications such as air and water. Since stress is drastically intensified in the thread region due to tightening, a relatively few cycles of expansion and contraction or movement caused by misalignment may subject the threaded flange to failure. Threaded steel flanges are usually limited to water or air services for sizes NPS 6 (DN 150) or smaller and with design temperature not exceeding 250F. ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706, HGFF Group Co., Ltd. specializes as the manufacturer, supplier and exporter of Threaded / Screwed Flanges that give an impetus to businesses working ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L. Bolt Circle = 1.6 mm Threaded Flanges, TH Flanges, Plain threaded flanges, Female threaded flanges, Male threaded flanges. Threaded Flanges are mostly used in utility services such as air and water. A flange is a type of device that is used to connect valves, pipes, pumps and other equipment that form a piping system. Another difference between the carbon alloy steel Threaded flange is its increased strength and durability when compared to duplex grade stainless steel Pn16 Threaded Flange. But today, Threaded Flange Manufacturers In India produce most of these threaded fittings keeping in mind that the Threaded flange ansi b16. Threaded Flanges uses in Structural Pipe. Tel: +86-311-89642206
