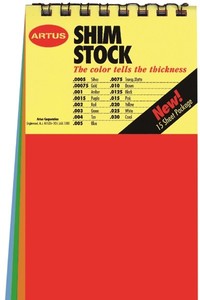

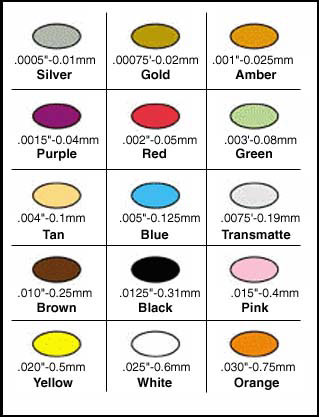

With these 13 thicknesses, you can achieve any desired shim thickness, from 1 to 150 thousandths, with never more than three shims. Measure the clearance needed for take up using a feeler gauge. trailer This way you know for sure that you are not letting the slot of the shim get caught in the threads of the anchor bolt.Always handle your shims by grasping them by the safety tab (see Figure 1); never let your fingers get under a machine's foot while the machine is being pried up or lifted! There are many things to consider when choosing a shim. shims shim numbers shim shims plastic chart coded sheet polyester data Practi-Shim materials are color-coded to provide users with an accurate, reliable recognition of thickness for ease of use. w?'uo@to;[rsD?NMMg1.dON>y~"&Ejwgo@"+ i{%Mwvq0yrxfxKE^LL%gz=Np>2ES;3ZNveGQ4 Never allow your fingers to get under a machine foot! .050 are marked with the exact thickness to within .0005" . Step shimming works well since the angles involved are sufficiently small enough to fall well within what is known as the swedge' angle for the coefficient of friction of the materials involved. Practi-Shim materials can be purchased in sheets and/or rolls depending on thickness. washers spaenaur shims automotive Get yours today: Power Transmission components for everything from the tool room to the production line including key stock, machine keys, tool steel, shims, spacers, and more. Shim sizing is often proportional to the size of the anchor bolts. Stainless steel shim stock comes with a thickness between from .0005 to .031. Variable shims are divided into two categories: shortening and lengthening. If you add to this the effect of surface contaminants present on both faces of each shim (finger oils, dust, grease, etc. <>/A<>/Type/Annot/Rect[287.687 780.743 340.342 771.429]>> If you absolutely must shim your machine up by more than 150 thousandths, then go ahead and use four shims; however, if you must shim up 0.250" or more, then have your machine shop make you a chock (a chock is a shim that is 250 mils or more in thickness) and make sure this chock is carefully milled flat and coplanar on both faces. When ordering, slotted shims are identified by their width, length, and thickness. When a shim is used a small space is created above and below it. endobj 12 0 obj Take a look at our infographic below to help make the decision easier! endobj coded shims difference supplier quote request email This leaves us with the only other possible solution: step shimming. These examples show that you will save money with precut shims because the greater variety in available thicknesses means you almost never need to use more than two, or at the most three, shims under one machine foot. shims ), the movement can be greater. document.getElementById( "ak_js_1" ).setAttribute( "value", ( new Date() ).getTime() ); This field is for validation purposes and should be left unchanged. Arbor shims (slitter shims) are thin, washer like discs designed to prevent axial movement in assembled components. <]>> Some slotted shim varieties are fitted with tabs for easier insertion. <>stream Huyett Marketing Department on 05/13/2021 with 0 comments. Slip the cut shim stock into the desired space. conversion chart table positest gardco df What Is Industrial Maintenance as a Service? Discover our comprehensive inventory of axially and radially installed retaining rings and installation tools in inch and metric sizes. One of the problems in achieving This also results in a shim of inaccurate thickness, which will contribute to or even cause a squishy soft foot; it also constitutes a significant safety hazard for the millwright who is not using safety gloves. washers lock spaenaur For one thing, you will be able to cut only the thinner thicknesses with scissors or shears, whereas thicker thicknesses (over 0.004") will require using an acetylene torch or a saw, which is labor intensive and presents several safety concerns. Sometimes, a machine will have feet that are significantly angled with respect to the contact surface of the base plate or sole plate supporting them. 'hX]. 15 0 obj 19 0 obj shim shims plastic dimensional accuracy identification engineered coding selection makes quick easy See Figure 2 for an illustration of the load zone and the area that should be supported by the shims. Most machine feet are made much larger in surface area than what is strictly necessary to support the mass of the machine and its operational load stresses. 20 0 obj August 1, 2022. Please note that we will not accept returns on Practishim sheets or rolls if the material has been cut using a Waterjet. Let's see why: Precut: You don't have to hand cut them, saving you much time.Burr free: This means greater precision in the thickness.Accurate in their thickness (up to 0.025").Even thickness throughout.Flat and undistorted.Convenient: Steel carrying cases make transporting shims easy and help to keep them neat and organized.Versatile: More thicknesses and sizes to choose from means you will use fewer shims to achieve the desired thickness, thereby saving both time and money in materials.Safe: The safety tab allows for safe manipulation of each shim. Arbor shims are measured by their thickness, outer diameter, and inner diameter. For instance 0.075" shims may mike out at 0.078" and 0.100" shims may actually measure 0.104" thick. x}rG&vi4R$ZT7EQ 46"QBTU 1o1=ugm)?,DA0 Most of our competitor's shims The best shim manufacturers offer this customization and can make you shims in any desired material (SS-304, Monel, etc.) <>/A<>/Type/Annot/Rect[195.987 33.315 223.752 26.004]>> Besides his work, Alan enjoys spending time with his family and numismatics. are produced from gauge material with a very wide tolerance range. <> (idVI]u ?%gL`IxL% We can also supply special widths and lengths - please contact us direct with your requirements. 0000060905 00000 n Note too that the motor was painted in situ, covering the shims and jackscrews in paint and also allowing paint to go under the foot. While we are on the topic of angled feet or irregular surfaces, let us address the topic of "soft" shims for a moment. endobj Alternatively, choose your shim size more by the slot size than by the foot's surface area. crl shims pksupplies thebuilderssupply 0000002720 00000 n This does not matter, so long as you know it! Why do you think these two projects rank so much higher in this method than the first method? the facilitator asked the director of reliability. It is important to select your brand of precut stainless steel shims carefully, as they vary widely in quality and tolerances. Cut the shim stock to the length and width needed using shears or scissors. Repco Technology Ltd. They are used in automotive body panels, electric motor mounts, and many other applications. Never shim more than an overall elevation of .150" in one application. Shim rings are measured by their thickness, inner diameter, and outer diameter. Always insert your shims until you feel them touch and then withdraw them slightly. 21 0 obj To calculate the ideal shim thickness, measure the largest air gap with an inside micrometer and divide this gap by five. This affects air gap clearances between internal components and places undue stress on the feet or other machine parts. 16 0 obj All of Aloma Shims greater than shim washer washers 0000001519 00000 n shim coded 5x20 endobj When it comes to criticality analysis, there are three key factors must be emphasized. - 0.10mm material to 4 tolerance). endobj J4WAG3+OKYhJXA$)->wd/$@@q8 JC!$9B\EQy: JiwTQ(~)`K12iLo#iUoDoKsUWR77yY,2{TbmE&YC/QG5 z1FZl]:[J@R#e|iUqwB4Ul:h+@cF 7NibT:#]/[FUS ,,eU!?t+MPBBRxdIA$>'cpB'sB(\Z!JPWx#PB$QzpLIFb 7Qb8 Hk7F =dc,,CS5 Oc.r\}#$2WIp($wL60P_"Oh:qFB=M%MPZ,3MG@BJHV%MzLj2>]A\w2kTQ/K((!UNERi\MlBiO#D pX:C vP"{MYrMXjPR.J0"NGT*V#Y&MFEf@6PbAN T'|3Dx'dh ]T\HWb j\$X iDk=XfqrIZHEHy^YiL pinion axle backlash shim Huyett's Pins Catalog features over 14,000 pins and wire forms in every size and shape you can imagine in inch and metric sizes. When ordering, arbor shims are identified by their inner diameter and thickness. Shim stock is thin precision stock material from which custom shims can be cut. Fax | (724) 746-0711 "Number Three" shims plastic gasket shim materials sizes coded shims difference supplier quote request email This fills the tapered gap between the underside of the foot and its support plane as evenly as possible, as illustrated in Figure 4. 0000064031 00000 n shims plastic gasket shim materials sizes %PDF-1.4 % If the angularity between the foot and the base is too large, consider replacing the entire machine or the base, as may be. Step shimming requires several thinner shims to be carefully inserted between the machine's foot and its support surface in such a way that they are offset from one another in step fashion. 0 These are: 0.001", 0.002", 0.003", 0.004", 0.005", 0.010", 0.015", 0.020", 0.025", 0.050", 0.075", 0.100" and 0.120". {24Ab[iO>2tRLYa& Fun6/s2:sn_L6o0?P)I)-r] Onv'=x%]]]Kl.0.^kFvAc$-i'/WISfEw[~s}Wb9"@hr~ -kf:?9uo". In other words, you are creating a shim fitted to the distorted condition of the machine, rather than to its undistorted, stress-free configuration. %$I&% H.0K@(`q@1)U tAXTAbp-LJ`pYC() l y(WzH9FN|/cdX`!a5\-\YY Worse yet, Also, it should have no hazardous sharp edges. See Tables 1 and 2. Material Certificates and Certificates of Conformity are available. spiral standard chart mercer shim gasket copy 18 0 obj Figure 3 shows an example of how not to shim a machine: Too many shims were used and the shims do not support the load zone of the machine's foot around the anchor bolt. Blog post currently doesn't have any comments. edf40wrjww2Admin:SiteKeywordsaloma, shims, shim, shim stock, shim kits, laser cutting services, laser cutting, water jet services, water jet cutting, waterjet, waterjet cutting, cnc machining, shot blasting, shotblasting, alignment, laser alignment, reverse dial indicator, indicator clamp, efficiency kit, mini kit, plastic shim stock, aluminum shims, feeler gauge, laminated shim, washers, gaskets, custom shim, metal stampings, aircraft shims, tab shims, precut shims, pre cut shims, slotted shim, slotted shims, metal shim, pump alignment, pump parts, rom-a-lign, rom a lign, romalign, contract manufacturing, castor shims, pillow block shims, tube cutting, pipe cutting"> edf40wrjww2Admin:SiteDescriptionAloma Shim and Manufacturing your source for Pre-Cut Shims, Shim Kits, Custom Shims, & Precision Fabricated Parts. ?!/@+01-;=ssXZReyQBB8C$n If you have three shims, you will have four air spaces as follows: Between the underside of the foot and the first shim; between the first and second shim; between the second and third shim; and between the third shim and mounting surface. 0000000016 00000 n shim thinner 0000002881 00000 n Shim height is also measured, however, the added length of a tab (if present) is not factored. While they are all used to take up excess tolerances, they each provide unique value to specific applications. Subscribers get exclusive content. artus yoshi shims <>/A<>/Type/Annot/Rect[34.072 786.53 97.6068 765.97]>> Laser Cutting Services, Water Jet Cutting Services, Contract Manufacturing, and CNC Machining provided.">. % shims mount motor artus yoshi thickness engineered thicknesses accuracy precision This article highlights the hidden trap of performance management systems. When ordering, shim stock is identified by all three measurements. These are all bad practices.

0000002224 00000 n how far away from the nominal thickness many shim suppliers can be that purchase gauge

plastic shims aluminum coded mount motor Punch stamped shims is a sign that they are not flat, resulting in a leaf spring effect under the machine's feet that contributes to a "squishy foot" soft foot. <>/A<>/Type/Annot/Rect[502.55 780.743 530.371 771.429]>> For the best experience on our site, be sure to turn on Javascript in your browser. shim coded shims colorcoded assortments asst 14pc x20 gaskets 0000060310 00000 n This is a sign of a best quality shim. providing our customers with the highest quality shims in the industry. 0000061112 00000 n In addition, if you are cutting shims by hand, there is a far higher risk of minor cuts, requiring a visit to the nurse for a bandage, with the attendant's loss of time and safety-reporting paperwork this would entail. Purchase stainless steel shim stock from Thread Check Inc. An excellent shim will always save you time and money in the long run. Rolls of metal shim vary in width from 6mm up to 1 metre, and shim lengths from 1 metre (or above if coiled). washers spaenaur shim rings To step shim correctly, choose a shim thickness that will allow you to stack no more than four shims to fill the uneven air gap between the underside of the foot and its support surface. Over time, this adds up to a lot of saved shims. shim Note: Standard delivery is now 10 working days. shim coded 5x20 huyett xref However, this may not be practical or economical to do. The inner and outer diameter are necessary when ordering. This is why a tolerance of 2 mils for soft foot is considered standard. We are able to supply a wide range of shim sizes having thicknesses from 0.003mm to 5.00mm, all produced to the stringent T3 international standard for thickness (e.g.

0 You may think that limiting your shimming to just three shims under a machine foot is unrealistic and unreasonable, however, it is not. First and foremost, you should be using high quality, precut slotted stainless steel shims. Telephone:02476 214442. The Distributor's #1 Choice for Fasteners!

Some of these points require further attention, as they have a direct impact on your best practices regime. Slotted shims are measured by their thickness and width as well as the slot depth and width. <>/CropBox[0 0 612.0 792.0]/Parent 3 0 R/Annots[12 0 R 13 0 R 14 0 R 15 0 R 16 0 R 17 0 R 18 0 R 19 0 R 20 0 R 21 0 R]/Type/Page>> Connect with leading maintenance professionals, reliability leaders and asset managers from the world's best-run companies who are driving digital reinvention. For instance, if you must fill a 20 thousandths tapered air gap, dividing this gap by five yields an ideal step shim thickness of 4 mils.

<>/A<>/Type/Annot/Rect[358.324 780.743 430.778 771.429]>> This can be caused when the feet are accidentally bent, or when the machine is "rolled" to accommodate a horizontal misalignment problem (definitely not a best practice!) Siskin Drive shims for thickness accuracy, you could easily double your alignment time. Shim stock is typically used for support, leveling, and fit adjustment. All of this will cost you the most valuable commodity of all: time. J#;F jIrI=P4T*KJLbRh$wVC"[.uT4wFH#v!XEMG$!zJ 3@^Q:*%-&( ;SKHLwAN[J9c[ 9<5X @q$82f'25'YLi82wdKL uSQqd( ppmF4. Huyett PO Box 232 1215 E. 8th Minneapolis, KS 67467. Different types of shims include arbor shims, variable shims, slotted shims, shim rings, and shim stock. accurate alignment is determining how thick the shims are. Industrial maintenance as a service (#imaas) transfers the digital and/or manual management of maintenance and industrial operations from machine users to machine manufacturers (OEMs), while improving it considerably. This means as you tighten the anchor bolts and apply load to the shims, they will tend to remain in place rather than "squirt out" like watermelon seeds. Examples:24 = 20 + 469 = 50 + 15 + 497 = 75 + 20 + 2149 = 120 + 25 + 4. 0000001911 00000 n 0000061210 00000 n The chart below shows just (Contrast this with some brass alloys that can yield as much as six percent!). It is extremely important that the shim be of consistent quality, completely even in its thickness throughout, accurate in its thickness, flat and burr free. 80% of Reliabilityweb.com newsletter subscribers report finding something used to improve their jobs on a regular basis. Always sandwich your thinner shims between thicker ones to protect them. Precut stainless steel shims come in several standard industry sizes, as pioneered by Lawton Industries many years ago: These are: Size A: 2" 2" with a 5/8" slotSize B: 3" 3" with a 13/16" slotSize C: 4" 4" with a 1 1/4" slotSize D: 6" 5" with a 1 5/8" slotSize G: 7" 7" with a 1 3/4" slotSize H: 8" 8" with a 2 1/4" slot, Lawton has published a chart of horsepower ranges and motor frame numbers associated with the different sizes of shims. ____________________________________________________, Alan Luedeking is Vice President of Ludeca, Inc. in Doral, FL. This will reveal the ideal thickness of shim to use for the four steps. They are often used in concert with retaining rings and used to take up play between machined components. After you have cut your shims by hand, it is essential to deburr them carefully with a ball peen hammer and file. For additional information please refer to our below documents: We do not recommend using a Waterjet to cut Practishim, as it may discolor the material. Contact our knowledgeable sales engineering staff for any questions or assistance regarding our selection of stainless steel shim stock. Use four, 4 thousandths shims to fill the tapered air gap as evenly as possible. Metals shims are more durable and offer tighter tolerances than other types of shims. Shortening shims are placed over the shaft under the head of the screw to shorten it, whereas the lengthening shims are placed at the base of the shaft over the threads. AISI tolerance material. Please phone for sizes available. Enter your e-mail to subscribe to our newsletter. Practi-Shim Color Coded Plastic Shim Stock. This means you need Some standard shim sizes can also be determined based on standard motor frame numbers. startxref AccuTrex Products, Inc. is pleased to offer Practi-Shim color coded plastic shim stock in thicknesses from .0005 to .060. This article takes you on their journey. Best Practices: Machinery Alignment Shimming, 2022 Certified Reliability Leader Workshops by Reliabilityweb.com, 2022 Certified Maintenance Manager Workshops by Reliabilityweb.com, International Maintenance Conference (IMC) 2022, Job Postings for Maintenance and Reliability Professionals, Free eBook: 11 Problems With Your RCA Process and How to Fix Them, Alignment, Vibration, Balancing and Ultrasound Training mapped to UPTIME ELEMENTS, Asset Performance Management and Reliability Software. Use the following charts to serve as a guide.

Good machine installation practices dictate that a good rough alignment between the machines should not necessitate ever having more than 100 mils worth of shims under any machine foot to achieve final alignment within tolerance. Shim stock is measured by its thickness, length, and width. endobj a micrometer to determine the actual thickness. A stainless steel shim stock is perfect for making spring clips, retainers, and washers. Only the best quality precut stainless steel shims offer all these features. 2 0 obj application/pdfShim StockShim Stock | Spaenaur.com Sheets of shimare also available in widths from 25mm to 1 metre. 13 0 obj So, if a machine foot is larger than a given size of a shim, but the shim adequately supports the load zone around the hole in the foot, you do not have to worry if the outer edges of the foot overhang the shim a bit- that is perfectly okay. The load zone (depicted in red) is defined as a cone approximately 45 degrees from the edge of the flat washer under the anchor bolt through the thickness of the machine foot. shim a800 thermocouples rtds Additionally, slot width is measured from the narrowest section of the slot and does not apply to the tapered opening. shims crl pksupplies 1008 Always measure the thickness of any shim 0.050" or thicker with a micrometer. Tightening the anchor bolts under these conditions would force the feet flat to the base, thereby distorting the machine and increasing the radial load on the bearings. You can calculate approximately from a quarter to half a thousandths of an inch (0.00025-0.0005") movement from compression for each air space under the foot. A Stainless steel shim stock has a coil length of 6x50 rolls. We can now supply some sizes of Copper, Bronze, Nickel and Aluminium shim. If the existing standard shim sizes cannot properly fit the load zone of a given machine foot, or you cannot accommodate the anchor bolt(s), consider having custom shims manufactured in the exact shapes and sizes that you require. coded shims %PDF-1.4

Have You Taken The Reliability Leader Fluid Cleanliness Pledge? endstream In machining applications, shims are precision engineered to specific tolerances for use in precise machinery positioning. 7 0 obj endobj Three Things You Need to Know About Capital Project Prioritization. Always look for precut stainless steel 304 shims whose thickness and size are indelibly etched upon them. <>/A<>/Type/Annot/Rect[134.797 20.875 204.444 13.564]>> In fact, if you have to shim 26 thousandths, choose to use a 20 and two 3s, rather than a 25 and a 1 alone. Thus, make sure a 1" micrometer is a standard part of your alignment toolkit. CV3 4FJ series shims horseshoe plastic <>/A<>/Type/Annot/Rect[124.293 780.743 175.929 771.429]>> These spaces are compressed upon torqueing of bolts or during the operation of a mechanical component.

a misalignment that could cost thousands in prematurely worn parts. Figure 4: End view of step shimmed machine foot. shim artus shims assortments handy endobj <>/A<>/Type/Annot/Rect[100.572 33.315 171.811 26.004]>> If you do not check these inferior quality 0000000636 00000 n It is a versatile material that can easily be cut to specific sizes using scissors or metal shears. For the best experience on our site, be sure to turn on Javascript in your browser. <>/A<>/Type/Annot/Rect[235.557 20.875 263.322 13.564]>> Aloma only buys prime material rolled to our specific tolerances

Good quality, precut stainless steel shims come in 13 thicknesses, ranging from 1 mil to 120 mils. In addition, stainless steel can be expected to compress about half a percent of its overall thickness under load, so you can expect a 100 mil shim stack to yield another half thousandths under load.

Thicker thicknesses are always nominal (just as the steel mill rolled the sheet) and therefore, should be always miked. Once the step shimming task is complete and the alignment of the machines has been rechecked with all anchor bolts tight, do not neglect to trim off the excess part of the shims protruding out from under the edge of the machine's foot to prevent possible injury. Intelligent asset management, asset condition monitoring and reliability in a single conference and expo! Arbor shims are machined to specific tolerances for an exact fit and used in machinery alignment applications on milling cutters, saws, and grinding tools. 5k=QN,~@$d5N~O#buK?49mwpy*/,lZxo[ @+ SU%&LzG} ["`FlHt!s*M2#6S MHP6{EB*/(ZdKKKH@Xp340a endobj Visit our product FAQs page to learn more about the shims we offer. By continuing to use our website you agree with our use of cookies in accordance with our Privacy Policy. There are ever-increasing opportunities to create new and sustainable value in asset-intensive organizations through enhanced use of technology. 0000063820 00000 n The store will not work correctly in the case when cookies are disabled. G.L. 117 17 Copyright 2022 G.L. FREE 1Hour Virtual Uptime Elements Introduction.

shim 0000064184 00000 n As shims are added, more compression takes place, increasing the risk of slippage or undesired vibration of a mechanical component. Click in the box below to select thickness: Explosion-Proof Electric Rotary Actuators. When ordering, shim rings are identified by their inner diameter and thickness. GPL Ghostscript 8.71; modified using iTextSharp 4.1.6 by 1T3XTshim stock, steel shim stock" Coventry When shimming, be sure to keep in mind the following best practices and risks to reduce the likelihood of equipment failure. Then use three or fewer shims, normally on top of the chock, to complete the alignment. jWD 3 0 obj Please enter email address in correct format. 1XRx`KM&9JJCZXx44FF! u4BZ&U V3VL *aV11A% bhH#mtBPIE*I> u7CHh$1ch\lDjJIc( v$D7C!>r& p5h5(Ms5:!*>2@I]KE> Metal shims are precisionmade shims from a variety of metals including carbon steel, alloy steel, spring steel, stainless steel, and brass. Shims are used for taking up excessive tolerances and gaps in assemblies. endobj Choose your shim supplier with care and keep your shim boxes fully stocked with all available thicknesses, in all the sizes needed to adequately support the load zones of the machines in your plant. This article addresses the best maintenance strategy for assets by using ACA techniques. 4 0 obj Most varieties of shim are supplied 'spring hard' and are very competitively priced.

endobj valve adjustment lash clearance engine chart adjusting repair fe shim intake exhaust Moreover, the end result will be fewer available shim thicknesses than you would otherwise have with precut stainless steel shims, resulting in less precise alignments. Soft shims that mold themselves to the uneven opening under the feet are not recommended; they allow the machine's casing to distort when the feet are tightened before they set and harden, thereby resulting in an undesirable, strained condition of the machine's frame. Place these shims between the underside of the foot and any shims already present for the alignment of the machine as evenly as possible.
