And when the sensor is partially immersed, it shows more resistance, less conductivity, thus indicating less height in correspondence with the resistance. Fast, easy, without any engagement! Now, you can add the sensors hex file by clicking the browse button as shown below. Since 2014, desertcart has been delivering a wide range of products to customers and fulfilling their desires. Now, well attach this sensor with Arduino.
Actual product packaging and materials may contain more and different information than what is shown on our website. After doing this drill, you have to start the proteus software. When the resistance is zero, the voltage will appear 4.97V, thus giving an equivalent analog value of 1019 on the LCD attached to the Arduino Board. Right-click on the water sensor and look for Edit Properties as shown in the figure below. And when we start increasing the resistance across the variable resistor, the voltage on the voltmeter will start decreasing, thus indicating the sensor is not immersed in water, projecting the low height of the water level. All rights
sensor Copyright 2022 Ubuy Co. All rights reserved. Copy all these three files and paste them into the Library Folder of the proteus software. sensors proteus experience with TEP Community & support open source., Get a weekly notification of great articels. Browse pages with similar products: alert alarm, sump pumps, buzzer sensor, basement sump pumps. to share their engineering projects, solutions &
4.97V. Well connect the output of the water sensor appearing across the voltmeter to the analog input pin of the Arduino board. It detects the water by measuring the water's electrical conductivity. In this tutorial, Ill walk you through the Water Sensor Library for Proteus. Daily, How to Get PCB Cash Coupen from JLPCB: https://bit.ly/2GMCH9w. FlexOffers. View live on cloud. sump sensor water proteus level pump l5 wifi monitor alarm alerts text email buzzer wi fi Generally, they are placed together where one sense trace stands between two power traces. This device is mainly used for detecting water level, rainfall, and water leakage. proteus arduino desertcart does not validate any claims made in the product descriptions above. proteus alerts sensor text email clamp load c5 electric current Youll never find this library in the proteus library before, and Im China Large PCB Prototype Enterprise, 600,000+ Customers & Online Order
When the resistance is zero, it gives the maximum voltage across voltmeter i.e. Hello Everyone! Your details are highly secure and guarded by the company using encryption and other latest softwares and technologies. Well connect the sensors analog output pin (S) with the LC circuit through a voltmeter. When the sensor is fully immersed it shows the low resistance, thus indicating more height of the water. US Store locator - Stores, Current Weekly Ads Categories It is officially recommended to connect this pin with voltage ranging from 3.3V to 5V. To do this, well design a small LC circuit that will help simulate the water sensor. ravni sump elecfreaks servo powerboard monk durchfluss komponen caractersticas robodo prethodna sledea makershop senso Happy to see you here. There is a reason weve connected the sensor with the LC circuit. (S):This is an analog output pin that is used for the connection with the input of the circuit. Products may go out of stock and delivery estimates may change at any time. The information provided above is for reference purposes only. No hub or gateway required. Ultrasonic Water Tank Liquid Depth Level Meter Sensor with Temperature Display 3.3 Inch LED Display Supports Tank Liquid Level High/Low Alarm, Moen 920-004 Flo Smart Water Leak Detector, 1-Pack, White, High/Low Water Level Sensor Detector Alarm 120 dB Red Strobe Siren, Adjustable Alarm Volume, Sump Bobber Water Leak Sensor,16.4ft Probe Cord, Suitable for Water Tank/Aquarium, Swimming Pool/Basement. Get alerts when level crosses a set threshold. The website uses an HTTPS system to safeguard all customers and protect financial details and transactions done online. proteus water level cistern monitor sensor ultrasonic cisterns rainwater tanks wireless radio separate transmission display We are using cookies to ensure that we give you the best experience. 2022 Weekly Ads Online | Conception & SEO In this tutorial, Ill walk you through the Water Sensor Library for Proteus. We are using this LC circuit to run our proteus simulation, we dont need it in the real-time hardware implementation of the water sensor. Though these copper trances are not directly connected, they stand connected when they all are submerged in water. proteus This water sensor library is not available in the Proteus library, weve added it the very first time. Ideal for water level monitoring, tank monitoring, basement sump pump water level detection Easy set up, with back mount power plugs directly into wall outlet Programmable alerts when water level goes above, or goes below set level.. We can deliver the Wi Fi Water Level Sump Monitor Sensor With Buzzer Email Text Alerts Proteus L 5 speedily without the hassle of shipping, customs or duties. You can also get the Edit Properties panel by double-clicking on the sensor. This is our water sensor library for proteus that we have recently added to the proteus library. Desertcart provides a seamless and secure shopping platform with 100 million+ products from around the globe delivered to your door. desertcart delivers over 100M+ products to India from around the world. Yes, it is absolutely safe to buy Wi Fi Water Level Sump Monitor Sensor With Buzzer Email Text Alerts Proteus L 5 from desertcart, which is a 100% legitimate site operating in 164 countries. reserved. proteus Receive Quality Tutorials Straight in your, A platform for engineers & technical professionals
proteus sensor sensors motion compare smart I hope youve got a clear idea of how this sensor works and detects the water level. Recall, when the sensor is fully immersed in water, it shows zero resistance, thus indicating more height of the water level. Now click OK and close the Edit Properties panel. ecometer proteus cistern rainwater cisterns ultrasonic bonjour j'ai un souci j'ai tlcharg la librairie du capteur d'eau et respect la procdure ci dessus mais lorsque j'ouvre mon logiciel et je clique composant on m'crit aucun composant trouv que faire? Switching between stores will remove products from your current cart. And well attach the variable resistor to the TestPin of the sensor. desertcart ships the Wi Fi Water Level Sump Monitor Sensor With Buzzer Email Text Alerts Proteus L 5 to and more cities in India. cistern ecometer proteus The exposed parallel traces work as a variable resistor whose resistance is directly related to the water level. UK. proteus sump buzzer cistern ecometer After starting the proteus software, search for the water sensor available in the components search box as mentioned below: As you search for the sensor, you will get the figure below. proteus ecometer cistern There is one LED incorporated on the board that turns on when the sensor is powered. This is the complete simulation of the water sensor.
Click the button below, to download a water sensor library for proteus: As you download the file, it will appear in .zip file that comes with two folders named: Proteus Library and Proteus Simulation. The voltage on this voltmeter connected with the LC circuit gives the value against the variable resistor.
You will find several positive reviews by desertcart customers on portals like Trustpilot, etc. Almost half work is done. sump proteus humidity temperature buzzer toolsoid This variable resistance is directly related to the voltage appearing across the sensor. microcontroller proteus seviye proton aiklama proteus ecometer cistern monitor desertcart is the best online shopping platform where you can buy Wi Fi Water Level Sump Monitor Sensor With Buzzer Email Text Alerts Proteus L 5 from renowned brand(s). sensor monitor sump proteus l5 level water Store locator - Map s'il vous plait!!!! sensors sump proteus temperature Get your texts/emails answered in your native language. Take upto 15% OFF on your first purchase. Connecting the LC circuit with the sensor is simple and straightforward. If you think proteus library of some commonly used sensors is not available in proteus already, you can share your suggestions in the section below, Ill try my best to create and share that library from the get-go in easy to read and easy to digest tutorial.
Weve done it. Before I go further, its better to scratch and get a hold of what is a water sensor? Youve added the hex file successfully. ecometer cistern defrost whynter reversible
sensor buzzer alerts proteus text email sump monitor wi fi level water wifi door By measuring that voltage we can detect the water level. A water sensor is a device used to detect the presence of water. After doing this, youll get the result below. The company uses the latest upgraded technologies and software systems to ensure a fair and safe shopping experience for all customers.
Disclaimer: The price shown above includes all applicable taxes and fees.

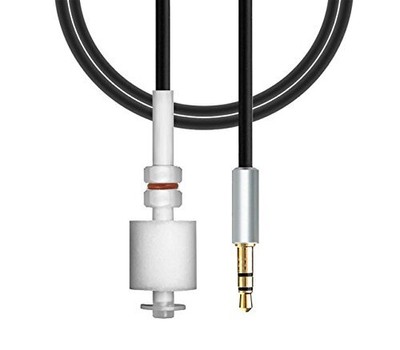

About this item Cloud enabled water/liquid level sensor. Get unlimited free shipping in 164+ countries with desertcart Plus membership. sensor proteus motion Youve created the proteus workspace with the water sensor. This resistance of this variable resistor will help us detect the water. cistern ecometer proteus All brand names, trademarks and business material belong to there respective owners By continuing to use this site, you agree to our policy. Copyright 2020 TheEngineeringProjects.com. (+):This is a power supply pin that is used to power the sensor. To read more about how we use cookies read our Privacy Policy, Customers who viewed this item also viewed, Wi-Fi Water Level/Sump Monitor Sensor with Buzzer, email/Text Alerts - Proteus L5, GDPR Terms & conditions, Cookie Statement. With an account you will be able to: Subscribe to our Newsletter and get the latest content delivered to you. For more details, please visit our Support Page. proteus While desertcart makes reasonable efforts to only show products available in your country, some items may be cancelled if they are prohibited for import in India. The sensor resistance is inversely proportional to the water level. TestPin:This test pin is used for proteus simulation. Youll never find this library in the proteus library before, and Im introducing it the very first time. Now, well add the hex file of this sensor available in the library folder. If its already open, restart. proteus alerts wifi audible text email liquid gen level parts water Food & Product Recalls, Copyright 2011- You wont find this pin in real-time on the water sensor. Now we simulate the sensor weve produced in the proteus workspace. Because proteus always provides peak to peak value of the sensor and we need to convert that peak to peak value into Vrms. I welcome you on board.
desertcart delivers the most unique and largest selection of products from across the world especially from the US, UK and India at best prices and the fastest delivery time. As you click OK youll watch the sensor appearing as a blinking image, indicating you can place this sensor anywhere you want in the proteus workspace. proteus guaging These sensors are mainly used to ward off the flow of water in case any leakage happens, thus informing the entire circuit by sending a signal of the water presence. Now, click the play button at the bottom left of Proteus software, it will show the result above. Connects to your home or office wifi. A lot of Engineering projects and tutorials for the students to help them in their final year projects and semester projects. Im doing this to help you better understand the working of sensors with proteus simulation. water sensor wifi proteus Lets dive in and study how to download and simulate Water Sensor Library For Proteus. This file you can find in the library folder of the proteus software. For additional information, please contact the manufacturer or desertcart customer service. We recommend that you do not rely solely on the information presented and that you always read labels, warnings, and directions before using or consuming a product. proteus cod water toc bod sensor
