Refrigeration is regional with 6 different air flow moving methods. Some manufacturers accomplish speed control by adjusting the taps on an AC transformer supplying the power to the fan motor. Excellent For Retrofits Matches dimensions of most US models. More recent developments include brushless DC designs with electronic commutation. A concealed fan coil unit will typically be installed within an accessible ceiling void or services zone. Fan coil units circulate hot or cold water through a coil in order to condition a space. The market by region was split in 2010 as follows: Learn how and when to remove these template messages, introducing citations to additional sources, Learn how and when to remove this template message, https://www.eurovent-marketintelligence.eu/, Heating, ventilation, and air conditioning, High efficiency glandless circulating pump, https://en.wikipedia.org/w/index.php?title=Fan_coil_unit&oldid=1099117139, Articles needing additional references from August 2014, All articles needing additional references, Wikipedia articles that are too technical from August 2014, Wikipedia articles with style issues from August 2014, Articles with multiple maintenance issues, Creative Commons Attribution-ShareAlike License 3.0, This page was last edited on 19 July 2022, at 02:48. This is a simplistic statement, and there is further reading on sensible heat ratios and the specific heat capacity of air, both of which have an effect on thermal performance. The Vertical Fan Coil (VFC) is a vertical forward curved, dual wall constructed unit. This allows either hot or cold water to enter the unit at any given time. It is quite common for the return air not to be ducted and to use the ceiling void as a return air plenum. If an indoor air handler is a direct drive unit, it should be considered a fan coil unit. High IEQ Indoor environmental quality is improved with sloped drain pans, high-efficiency filters, and low sound levels. The normal arrangement is a bottom grilled return and a grilled supply out the front of the unit. These units are normally about 25 high and extend 9 to 10 out from the wall. These unit are hung off the wall and can be fully exposed or partially contained inside the wall. An extensive range of options includes single-wall stainless steel drain pan, high-effiency motors and a variety of coil choices. Floor, wall or ceiling mounted models and galvanised prepainted casing with anti-condensation versions : - 2 tubes. Component flexibility and units that can ship fully assembled reduce installation time, labor, and cost. The exhaust fan is a dual centrifugal exhaust fan that uses a forward wind wheel, which has a large air flow and low noise. Archive semi series (models of previous years), Archive DC-multi-split systems (past years models), Archive outdoor units VRF (models of past years), High power ducted split systems medium pressure, High power ducted split systems high pressure, Archive of duct split-systems of high power, Modular chillers with the heat pump of the Aqua -Tempo Inverter series, Aqua Tempo Super Series without hydronic module, Aqua Tempo Smart series Modular 25-250 kW blocks, Aqua Force Monoblock series with screw compressor without hydronic, 4-way Cassette fan coils "Compact" series, 4-way Cassette fan colis "Standard" series, Fan coils Controllers and Electronic boards, Archive of fan coils (models of previous years), Outdoor units of a split-type heat pumps with an air heat extraction, Midea "Fan coil units Floor Type (2-pipe) MKH1(2,3,4)". There are numerous designs of ceiling mounted fan coil units. Sloped drain pans and high-performance filters improve indoor air quality (IAQ) and reduce sound levels. There is also a hinged access from the room into the unit for servicing. wg. The Fan Coil is composed of one quarter of 2-pipe-units and three quarters of 4-pipe-units, and the most sold products are "with casing" (35%), "without casing" (28%), "cassette" (18%) and "ducted" (16%).[1]. These conditions/criteria could be the 'real time' demand for either heating or cooling, occupancy levels, window switches, time clocks or any number of other inputs from either the unit itself, the Building Management System or both. *Prices are pre-tax. 2022All rights reserved ceiling mounted koppel unit water cooling fcu 3tr coil fan ph These units all have insulted cabinets that vary in height, width, and depth. Four-pipe fan coil units have two supply pipes and two return pipes. They can fit any HVAC users needs, and they set new standards for quality and competitive pricing. We are the specialists in replacing older units. {{#pushedProductsPlacement4.length}} This site uses cookies. Changes will take effect once you reload the page. Contact Now. USA Coil & Air offers various types of fan coil units, arrangements, and accessories to go along with them. The coil receives hot or cold water from a central plant, and removes heat from or adds heat to the air through heat transfer. They have filters, coils, and direct connected fan-motor arrangement. You can read about our cookies and privacy settings in detail on our Privacy Policy Page. This unit ELECTRICAL The output from an FCU can be established by looking at the temperature of the air entering the unit and the temperature of the air leaving the unit, coupled with the volume of air being moved through the unit. Two-pipe fan coil units have one supply and one return pipe.

Hi-Rise units include the vertical unit, chilled and hot water supply and return piping, along with condensate removal. The return air grille and supply air diffuser, typically set flush into the ceiling, will be ducted to and from the fan coil unit and thus allows a great degree of flexibility for locating the grilles to suit the ceiling layout and/or the partition layout within a space. {{/end}} This is a unit that has a decorative case, covering the unit entirely. Often the most inexpensive way to heat or cool a small space, No matter where its located: ceiling, wall, or exposed; the units require little or no ducting, Each individual area that is fed by a fan coil unit can be temperature and air volume controlled, Because they are direct drive type, the fan usually cant handle air resistance and elaborate ductwork designs, Units are close to proximity of people, so local noise can be a problem, Air distribution can be problematic as space may require more even distribution, Wall or unit mounted controls to include speed switches, all types of thermostats, disconnects, and transformers for line to control voltage, Valve packages to include two and three types, flow control, ball valves, strainers, and many other piping package requirements, Efficiently designed ECM motors that provide quality payback over time. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates. -, {{product.productPrice.formattedPriceMax}}. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. 5. And the filters are easily replaceableno maintenance appointment required. This decorative bottom usually sits flush into a false ceiling. ENVIRO-TEC fan and blower coil units are manufactured from galvanized steel and designed to meet the highest standards of quality to maximize performance. A simple speed selector switch (Off-High-Medium-Low) is provided for the local room occupant to control the fan speed. Noise output from FCUs, like any other form of air conditioning, is principally due to the design of the unit and the building materials around it. These cookies are strictly necessary to provide you with services available through our website and to use some of its features. Many times, they are located where a lower silhouette unit is required due to windows or glass extending almost the entire height of the wall. Additional coil: 1 row. HORIZONTAL AND VERTICAL BLOWER COIL UNITS, INSTALLATION, OPERATION, AND MAINTENANCE MANUALS. They can have bottom or front returns and either top or front discharges. 2 main coils : - 3 rows. Receive updates on this section every two weeks. Traditionally fan coil units can contain their own internal thermostat, or can be wired to operate with a remote thermostat. Most fan coil units cant handle tropical temperature and humidity load. coil fan ultra ceiling thin mounted unit pump heat We may request cookies to be set on your device. The pipes are usually insulated with refrigeration insulation, such as acrylonitrile butadiene/polyvinyl chloride (AB/PVC) flexible foam (Rubatex or Armaflex brands) on all pipes, or at least on the chilled water lines to prevent condensate from forming. Alternatively a condensate pump may be employed where space for such gravity pipework is limited. - horizontal ceiling casing. Legs are separable from the cabinet for easy transportation and installation. As part of an HVAC system found in residential, commercial, and industrial buildings using ducted split air conditioning or with central plant cooling, a fan coil unit is often connected to ductwork and a thermostat to regulate the temperature of one or more spaces as well as assisting the main air handling unit for each space if used with chillers. They might also be linked to liquid-cooled condenser units which use an intermediate coolant to cool the condenser using cooling towers. {{#i!=(product.specData.length-1)}} Permanent split capacitor (PSC) motors help vertical fan-coil units achieve industry-leading power consumption. Fan coil units Floor Type (2-pipe) MKH1,2 (3). {{#each pushedProductsPlacement5}}, With DirectIndustry you can: Find the product, subcontractor or service provider you need | Find a nearby distributor or reseller| Contact the manufacturer to get a quote or a price | Examine product characteristics and technical specifications for major brands | View PDF catalogues and other online documentation. Floor convectors and Built-in floor fan coils are an ideal heating/cooling solution for commercial, residential and institute application, and is an alternative for construction renovation projects. These units are less decorative cabinets and are located within the wall or decorative special cabinet at the floor level. Since these providers may collect personal data like your IP address we allow you to block them here. The electromotor uses a 3-speed fan motor. 5 assemblies : - vertical lightweight casing. Vary H & W in 1 increments, up to 12. That statement tells all of us that in almost every existing system there are huge temperature and air distribution problems, and the tenants and owners have had to live with these problems for years. If normal fan coil units dont remove the humidity within a space during peak load times, we may have your answer. A straight swap, AC to DC, will reduce electrical consumption by 50% but applying Demand and Occupancy dependent fan speed control can take the savings to as much as 80%. This unit is the same as the basic floor exposed unit, except the discharge for supply air is at a 45-degree angle rather than straight up air flow discharge. In high-rise buildings, fan coils may be vertically stacked, located one above the other from floor to floor and all interconnected by the same piping loop. Optional piping packages with on/off, modulating or proportional control valves. Typically, return air enters at the bottom front of the unit and supply air enters through the grilled top discharge.

1. In areas of the world where there are legally enforceable energy efficiency requirements for Fan Coils (such as the UK), DC Fan Coil Units are rapidly becoming the only choice. All Rights Reserved.

USA Coil & Air pioneered a new patent-pending fan coil unit designed for high humidity areas in the world called the Tri-coil. This unit style has all the same components as the basic floor exposed units, but they are shorter in height and are usually deeper out from the wall. Ruidong Group Co.,Ltd.

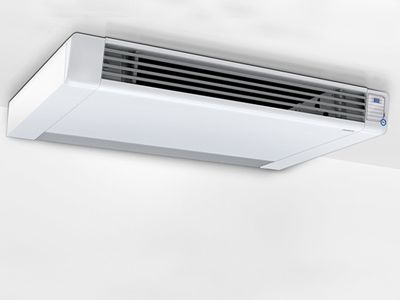

There is no ductwork to the back of a basic unit, and the supply ductwork is off the front of the unit. Building Energy Management Systems can be used for automatic fan speed and temperature control. The reason that these DC Fan Coil Units are, despite their apparent relative complexity, becoming more popular is their improved energy efficiency levels compared to their AC motor driven counterparts of only a few years ago. An exposed fan coil unit may be wall-mounted, freestanding or ceiling mounted, and will typically include an appropriate enclosure to protect and conceal the fan coil unit itself, with return air grille and supply air diffuser set into that enclosure to distribute the air. See ASHRAE Handbook "2008 Systems & Equipment", Chapter 12. Normally filters are located just above the inlet to the plenum area above the ceiling. Typically this would require adjustment at the commissioning stage of the building construction process and is therefore set for life at a fixed speed. Add. Owing to their simplicity and flexibility, fan coil units can be more economical to install than ducted 100% fresh air systems (VAV) or central heating systems with air handling units or chilled beams. 7. A fan coil unit (FCU), also known as a Vertical Fan Coil-Unit (VFC), is a device consisting of a heat exchanger (coil) and a fan. We use cookies to let us know when you visit our websites, how you interact with us, to enrich your user experience, and to customize your relationship with our website. Request for quotation or model choosing? YORK Floor-mounted, Vertical Fan Coil Units provide maximum performance, design flexibility and industry-leading power consumption.With an impressive list of standard features, the vertical floor-mounted units offer unparalleled design flexibility while also reducing installation costs. Model Flexibility Available in concealed, exposed, and slope-top models.
